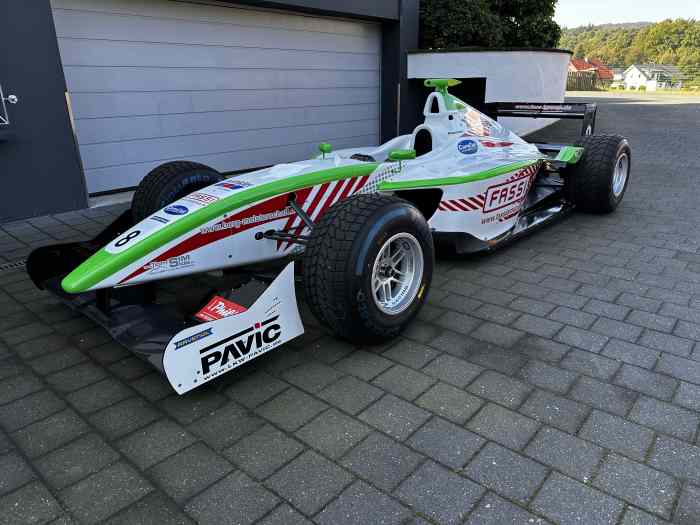

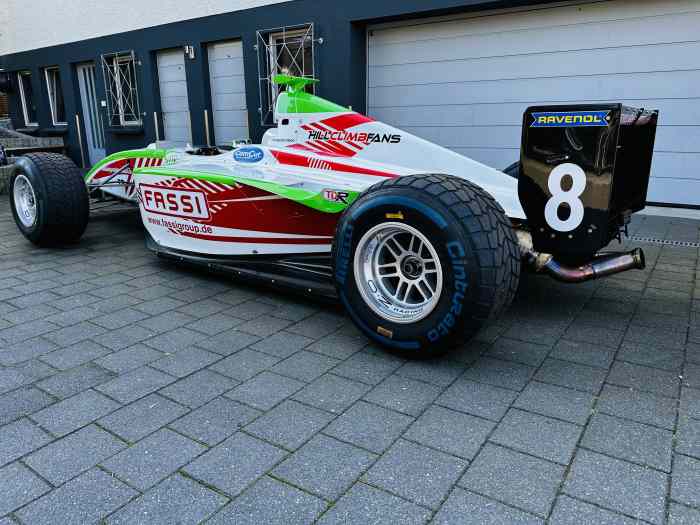

Dallara World Series 3.0 T-02

Technical details Dallara World Series 3.0 T-02

Manufacturer and type: Dallara World Series 3.0 from Nissan (built in 2001)

Chassis number: T02-006 (of 20/21 cars worldwide) -> 1st owner 'Gabord Competition' (written proof from Dallara Italy is available)

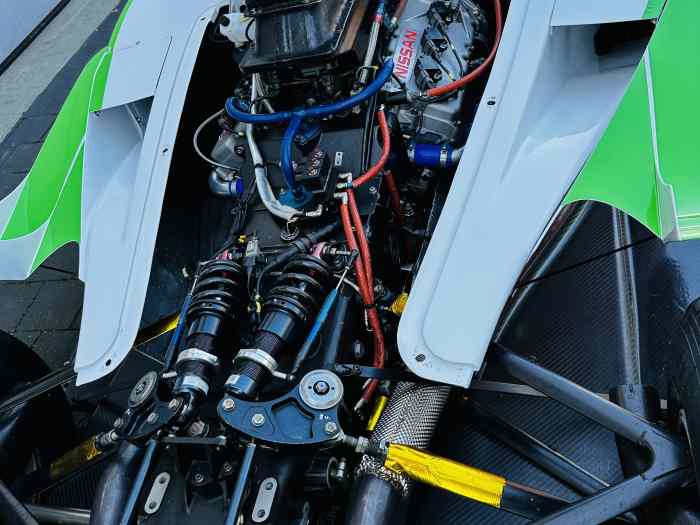

Engine: Nissan AER 3.0 V6, 3000ccm with approx. 450hp and 8,200 rpm (engine running time approx. 4,600km)

Paddle Shift System (Geartronics) with Compressor. Working together with ECU on Can Bus system very great!

Electrics: CAN bus system: Lifeline ECU, PI steering wheel + box, Geartronics GCU and AIM camera system. Complete data recording (own service possible or exchange service via TDR-Performance Ireland)

Details:

The vehicle has been in my possession since October 2022 and was then handed over to Sascha Herz's Drive Solutions on the day of handover GmbH to carry out a complete major inspection. The vehicle was already in very good condition at the time of purchase and was started and test-driven before dismantling, with the result: everything was OK.

The condition of the vehicle today can be described as particularly high quality. A World Series in this condition will certainly no longer be available on the market.

Service and upgrades:

The vehicle was then completely dismantled down to the monocoque. This was repainted together with the entire paneling.

After the repainting, the vehicle was completely rebuilt at the beginning of 2023. All suspensions were checked and some were fitted with new bearings. The gearbox was checked and re-geared (bearings were all OK).

The entire electrics were checked. Some new sensors were installed and much, much more.

List (documented with pictures):

- New bearings in the differential and on the cardan output
- Steering gear dismantled and serviced
- Starter dismantled and serviced
- All quick fasteners on the panel replaced
- A new foam extinguishing system was installed (OMP)
- A new safety tank from Continental (valid until Jan. 2028) was manufactured and installed
- New fuel filter
- New starter main fuse
- New seat belts were installed

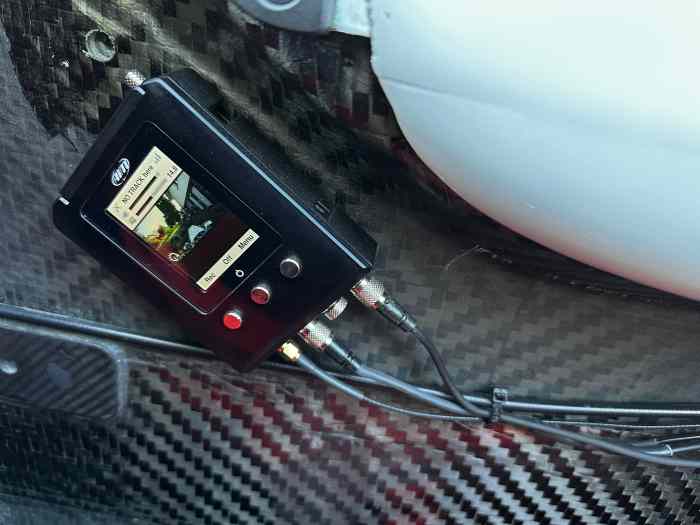

- New AIM Smartycam complete system was installed (with custom-made camera mount)
- Technical overhaul of all brake calipers (new seals) pistons were all OK
- Technical overhaul of all master cylinders (brake and clutch)
- New vehicle passes initial inspection in 2023
- In July 2023 the dampers were overhauled by “Rene Jungnickel”, a specialist for Koni
- New springs for throttle linkage
- February 2024 new double HJS Kat exhaust system 2 in 1 according to DMSB FIA regulations
- In August 2024 a completely new Sachs 3-disc carbon clutch was installed together with a newer clutch slave cylinder and release bearing
and much more...
Accessories and spare parts available in addition to the Dallara T02 vehicle:
- 1 front wing complete, newly painted and foiled
- 2 front wings carbon newly painted
- 2 sets of front wing side panels
- 1 set of rear wing side panels
- 1 right side box completely newly painted in white
- 1 left side box completely newly painted in white
- 2 right and 2 left wings for side boxes
- 2 carbon side box covers
- 2 brackets for wing on side box newly painted
- 1 engine cover newly painted in white
- 2 large and 2 small mirrors
- 1 underbody as good as new
- 1 set of wooden panels for floor new
- 3 sets of scraper strips for floor
- 1 nappy (rear floor extension)
- 1 front underbody floor tip carbon
- 2 carbon brackets for connecting underbody to engine
- 1 safety seat insert (rescue seat)
- Original 2 in 1 exhaust system (end piece without silencer or catalyst)
- 18 sets of gear ratios
- 2 sets of crown gear/bevel gear shaft (differential)
- 3 pieces of gearbox input shaft
- 6 pieces of new drive shafts
- 6 pieces of tripods for drive shaft
- 2 pieces of wheel bearing body
- replacement clutch basket Sachs and accessories
- 2 pieces of used AP carbon clutch
- 2 pieces of used AP release bearings
- 2 sets of exhaust manifolds
- 1 piece of crankshaft (used)
- 2 pieces of camshafts (used)
- 3 pieces of fuel pumps
- 1 piece of replacement starter
- 2 pieces of bellhouse
- 11 pieces of very good used brake discs
- 3 pieces of brake disc holders
- 4 sets of replacement brake pads
- 5 pieces of Brembo brake calipers almost new or new
- 2 pieces of carbon air ducts for the brake
- 1 piece of aluminum cooling water tank
- 1 piece of AP Racing master brake cylinder (for clutch or Brake)
- 1 piece tank approx. 40 liters (old for samples for reproduction at e.g. Continental)
- 1 piece aluminum tank flange
- 1 piece tank flange seal
- 1 piece petrol catch tank (housing for pump and filter insert)
- 12 pieces spark plugs
- 3 pieces ignition coils
- 2 pieces new camshaft sensors
- 1 piece external blower fan for warm-up phase
- 1 piece 12V jump start battery
- 1 piece laptop including all software and connection cables
- World Series data manuals, World Series Dallara spare parts, World Series engine + electrics
spare parts, Ricardo gearbox, etc.
- 1 piece rear wing upper part complete 2-part new clear varnish painted with guide plates
- 1 piece rear wing upper part large wing new clear varnish painted + guide plates

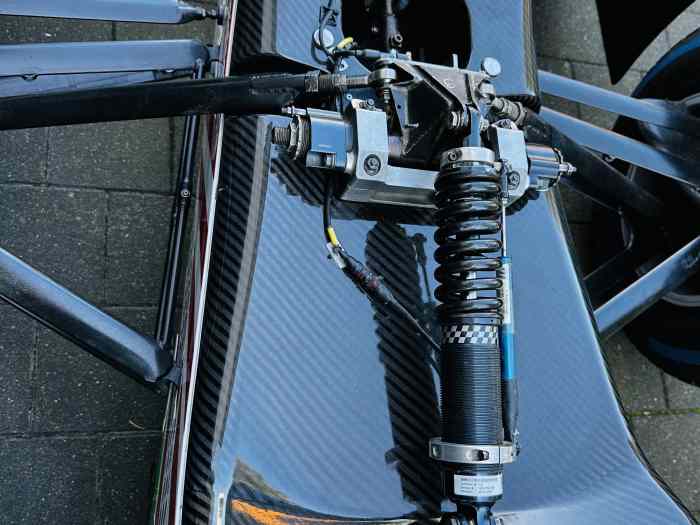

- 1 complete set of Koni suspensions (damper with spring for: 1x front, 2x rear)
- Large box full of suspension springs in various hardnesses
- Various replacement wishbones and suspensions
- Replacement bumpers
- Refill line for petrol
- 1 wheel hub for center console locking
- Various green and red central locking nuts (left and right)
- 1 set of new Pirelli Wet Soft rain tires (Formula 1 size) on OZ-Racing World Series rims
- 1 set of used Avon Wet Soft rain tires (70%) Formula 3000 size on OZ-Racing World Series
rims
- 1 set of Avon A850 Slicks Hillclimb Mix up to 5km 30%
- 1 set of Avon A850 Slicks Hillclimb Mix up to 5km 70-80% (22km run) on OZ-Racing World
Series rims
- 1 set of Avon A850 Slicks Hillclimb Mix up to 5km 80-90% unassembled
- 2 new rear OZ-Racing World Series rims
- Quick lift for the front and rear
- Rolling board for maneuvering and workshop use (vehicle wheels have no contact with the ground,
like in Formula 1)

A lot of detail Pictures of my Car and Onboard and Track-Videos are available (in Micardo only 5 Pictures are possible).

If you have any questions, please call or Whatsapp: +49 151 203 444 62
