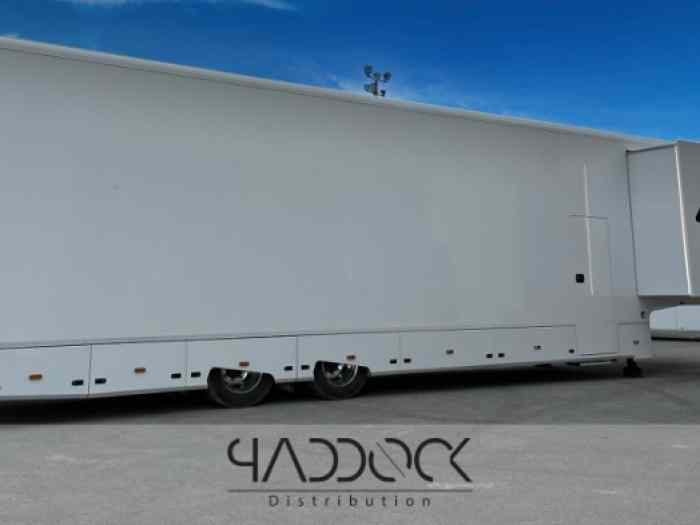

Asta Car Z2 Slide 'SOLD'

Technical specifications.

Brand: Asta Car
Year: 2022
Color: White Ral 9003
Total Weight: 28.000 KG
Axles: 2
Tires: 265/70 R19,5
Outside lenght: 13.955 mm
Inside lenght: 13.700 mm
Outside width: 2540 mm
Inside width: 2432 mm
Outside height: 4.000 mm
Inside height: 2.995 mm (Front 2600mm)
Lift: Dhollandia 2500 – 3000 KG
Lift entry: 2220 mm
King pin height: 1110 mm
Lateral door: On the right side 1 door.
Loading capacity: 4 Cars maximum
Gooseneck: YES
Underfloor lockers: YES
Windows: 2
Stock Configuration 4816 Z2.

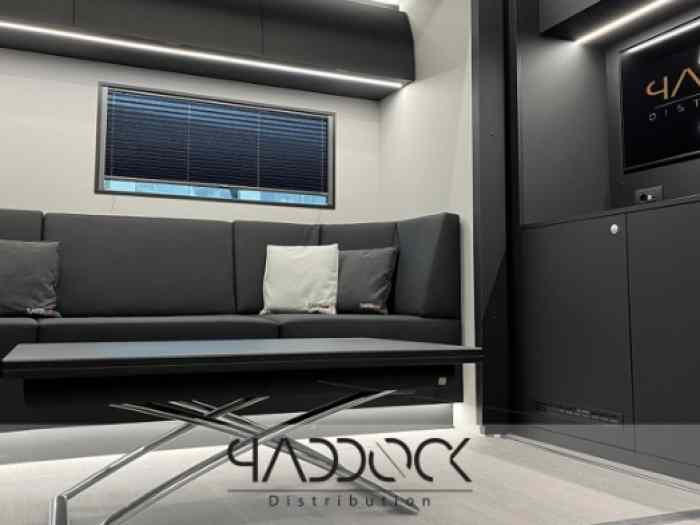

LIVING AREA: Roof Fixed Glass 1600x1000 WITH THERMAL SEAL (OUTER GLASS Reflective Dark Gray With Anti UV Screen Printing + Air Chamber + TRANSPARENT INTERNAL GLASS).

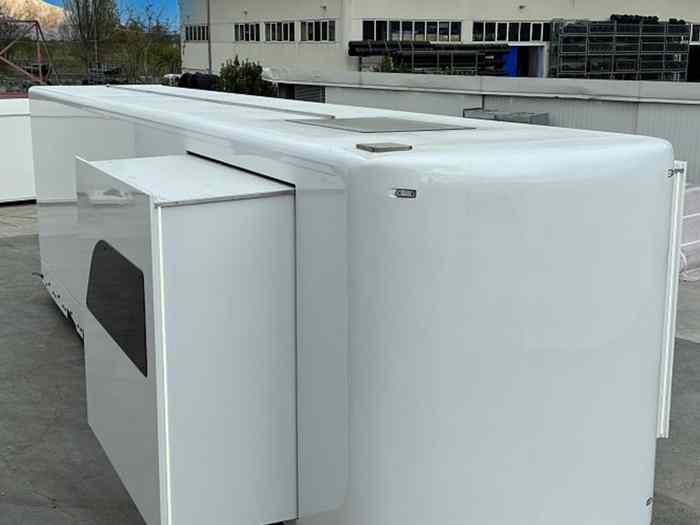

TWO lateral hydraulic extension (length 3m) on the gooseneck (NO STEP).
4 hydraulic stabilizers (single and contemporary movement).
2nd floor 'UP & DOWN' mt 10 black multilayer floor + load stop bars recessed on the floor (mt 10 + 10).Nr 6 whole panels. Wood Floor Black 9mm (1^ floor)(25m2).
Aluminum load stop bars> on the lateral walls (1 floor)(10m + 10m).
Black rubber profile (protection side wall) (1 floor)(10m + 10m).
Aluminum load stop bars> floor recessed (1 floor)(10m + 10m).
Securing ring for load stop bars.
Electrical system with panel + cables for connection at 220 volt 220 volt, 13+13 meters of strip led. Wiring diagramme. 6 Switch light on / off.
Heating and cooling system air conditioning with 2 split, model 25K+35K (one for living area + one for cargo area). N.1 Laminate cover for Split.
Internal lighting in the vertical walls: led strip lights in the aluminum vertical bars.
Internal lighting in the locker area (UNDER CHASSIS). Night kit led 3+3 (external light under chassis).
Led strip lighting IP67 External in the 2,5+2,5.
Electrical BOX 220V for Plugs. Schuko plugs 220 Volts x20 + RJ45 x8 + TV plugs x 2 + HDMI x 2 + 2 TV Smart Full Hd - Project electrical as Built. (BITICINO AXOLUTE PLUGS).
LIVING AREA: Roof Fixed Glass 1600x1000 WITH THERMAL SEAL (OUTER GLASS Reflective Dark Gray With Anti UV Screen Printing + Air Chamber + TRANSPARENT INTERNAL GLASS).
TWO lateral hydraulic extension (length 3m) on the gooseneck (NO STEP).
Missing voltage / neutral over load. FAN model 182 / B for systems area.
Heating and cooling system air conditioning with 2 split, model 25K+35K (one for living area + one for cargo area). N.1 Laminate cover for Split.
